07-处理多维特征的输入

数据集

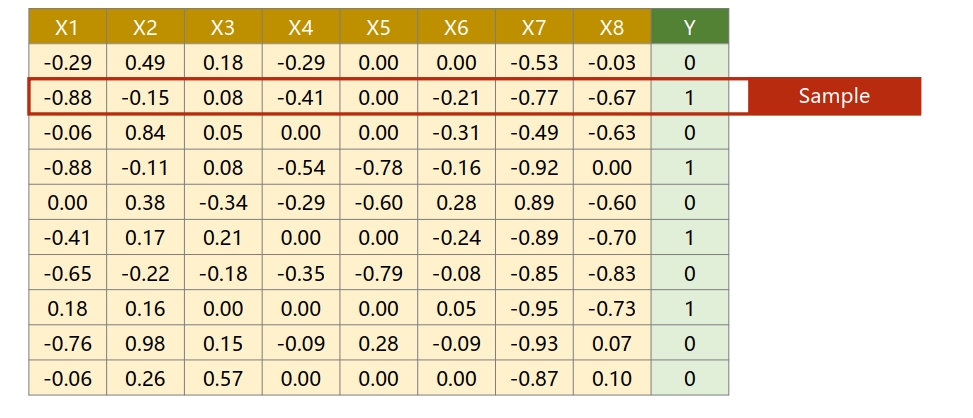

image-20210227114517458

一个样本具有的多个特征即多维特征。

import numpy as np
xy = np.loadtxt('./数据集/diabetes/diabetes.csv.gz',delimiter=',',dtype=np.float32)
x_data = torch.from_numpy(xy[:,:-1])
y_data = torch.from_numpy(xy[:,[-1]]) # 使用[-1]取出数据后是矩阵形式，使用-1则是向量

logistic回归模型

$$\hat y^{(i)} = \sigma(\sum\limits_{j=1}^nx_j^{(i)}\cdot w_j + b) = \sigma(W^T\cdot X+b)$$

其中$W^T = [w_1,\cdots,w_n]$，$X^T=[x_1,x_2,\cdots,x_n]$。

import torch

class LogisticRegressionModel(torch.nn.Module):

    def __init__(self,):
        super(LogisticRegressionModel,self).__init__()
        self.linear = torch.nn.Linear(8,1)
        self.sigmoid = torch.nn.Sigmoid()

    def forward(self,X):
        y_pred = self.sigmoid(self.linear(X))
        return y_pred

lrm = LogisticRegressionModel()

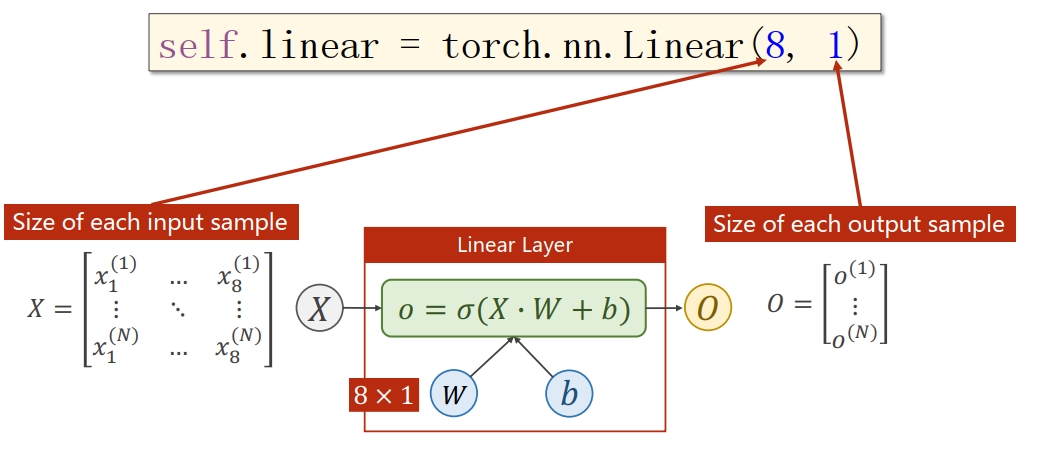

image-20210227120525450

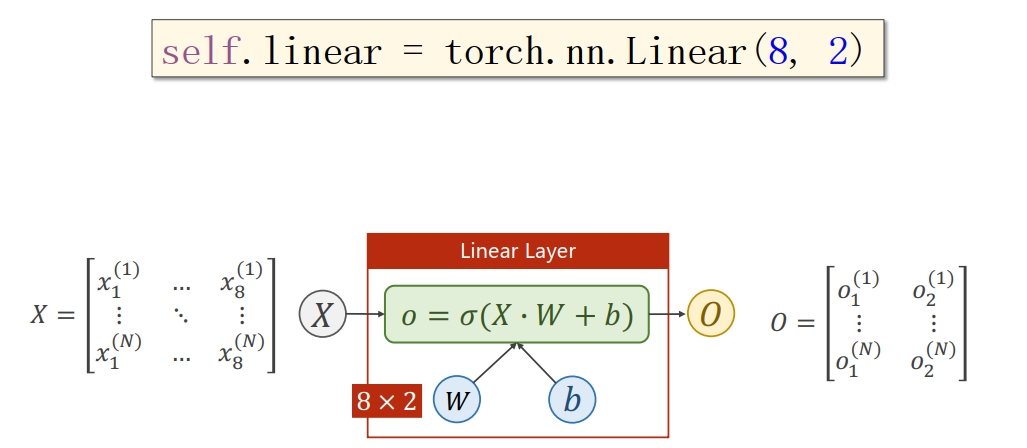

如果，权重$W$为$8 \times 2$的矩阵，则如下表示：

image-20210227120651890

示例

• 神经网络层

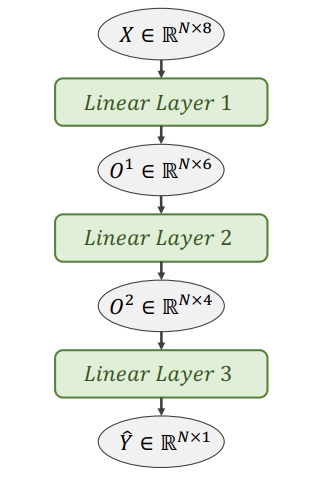

image-20210227123147738

• 定义模型

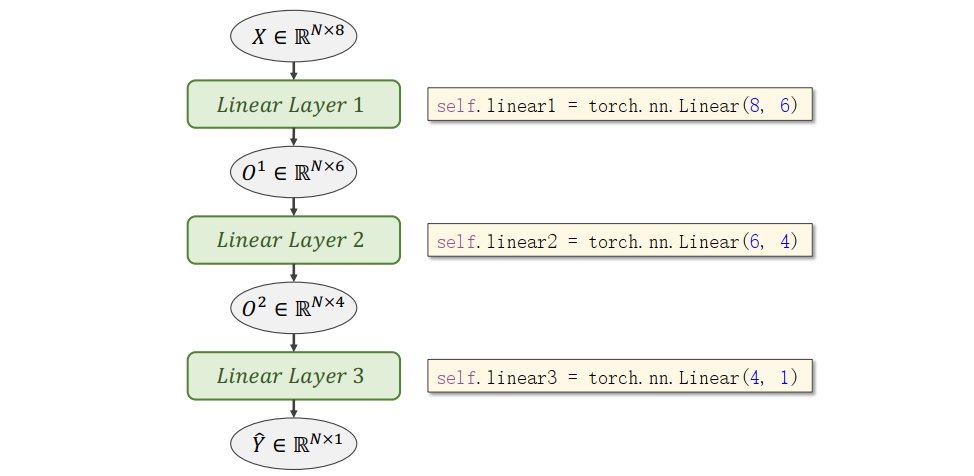

image-20210227131619619

import torch

class LogisticRegressionModel(torch.nn.Module):

    def __init__(self,):
        super(LogisticRegressionModel,self).__init__()
        self.linear1 = torch.nn.Linear(8,6)
        self.linear2 = torch.nn.Linear(6,4)
        self.linear3 = torch.nn.Linear(4,1)
        self.sigmoid = torch.nn.Sigmoid()

    def forward(self,X):
        x = self.sigmoid(self.linear1(x))
        x = self.sigmoid(self.linear2(x))
        x = self.sigmoid(self.linear3(x))

        return x

lrm = LogisticRegressionModel()

• 构造损失函数以及优化器

criterion = torch.nn.BCELoss(reduction='sum')
# lr为学习率
optimizer = torch.optim.SGD(lrm.parameters(),lr=0.1)

• 训练

for epoch in range(100):
    y_pred = model(x_data)
    loss = criterion(y_pred,y_data)
    print(epoch,loss.item())

    optimizer.zero_grad()
    loss.backward()

    optimizer.step()

更多激活函数
